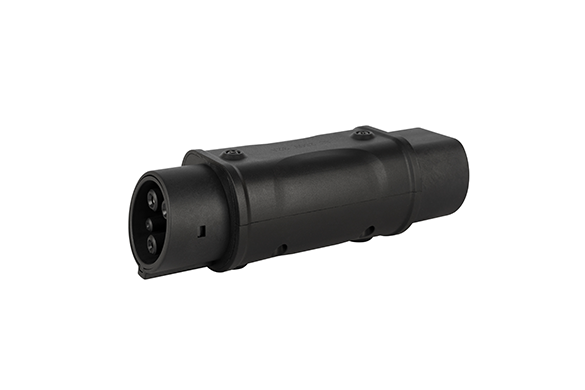

EV Charging Adapter TYPE2 to TYPE1

Mechanical properties

Mechanical life: no-load plug>10000times

Impact of external force: can afford 1m drop and 2T vehicle run over pressure.

Electrical Performance

The rated ampere: 16A、32A

The rated voltage: 250V

Insulation resistance: >1000MΩ(DC500V)

Pins temperature rise:<50K

Withstand voltage: 2000V

Contact impedance: 0.5mΩMax

Applied Materials

Shell Material: thermoplastics, flame retardant grade UL94-V0

Pin: Copper alloy, silver

Environmental performance

Operating temperature: -30℃~+50℃

TYPE2-TYPE1 Adaptor Charging Mode3 Features

• Conform to the provisions and requirements of 62196-2 IEC 2010 SHEET 2-lle.

• The product assembly conforms to IEC 61851-1 2010 charging mode 3 connection mode B2.

• Adopt no screw rveting pressure process, beautiful appearance. Hand-held design conforms to the principle of ergonomics, convenient plug and pull.

• Reliable materials, flame retardant, pressure resistance, abrasion resistance, impact resistance, high oil resistance.

• Excellent protection performance, IP65 protection level of the plug (working state) high security.

TYPE2-TYPE1 Adaptor Charging Mode3 Parameter

EV Charging Cable Tests

Through rigorous testings, the best quality in the Chinese market, if you choose HERO Cables, it will definitely enhance the value of your car brand / charger brand in the market !

EV Connector Bending Test

Flame test

Glow Wire Test

Low Temperature Rolling Test

Salt test

Warmly welcome to contact Hero to get the directly price from the factory .
