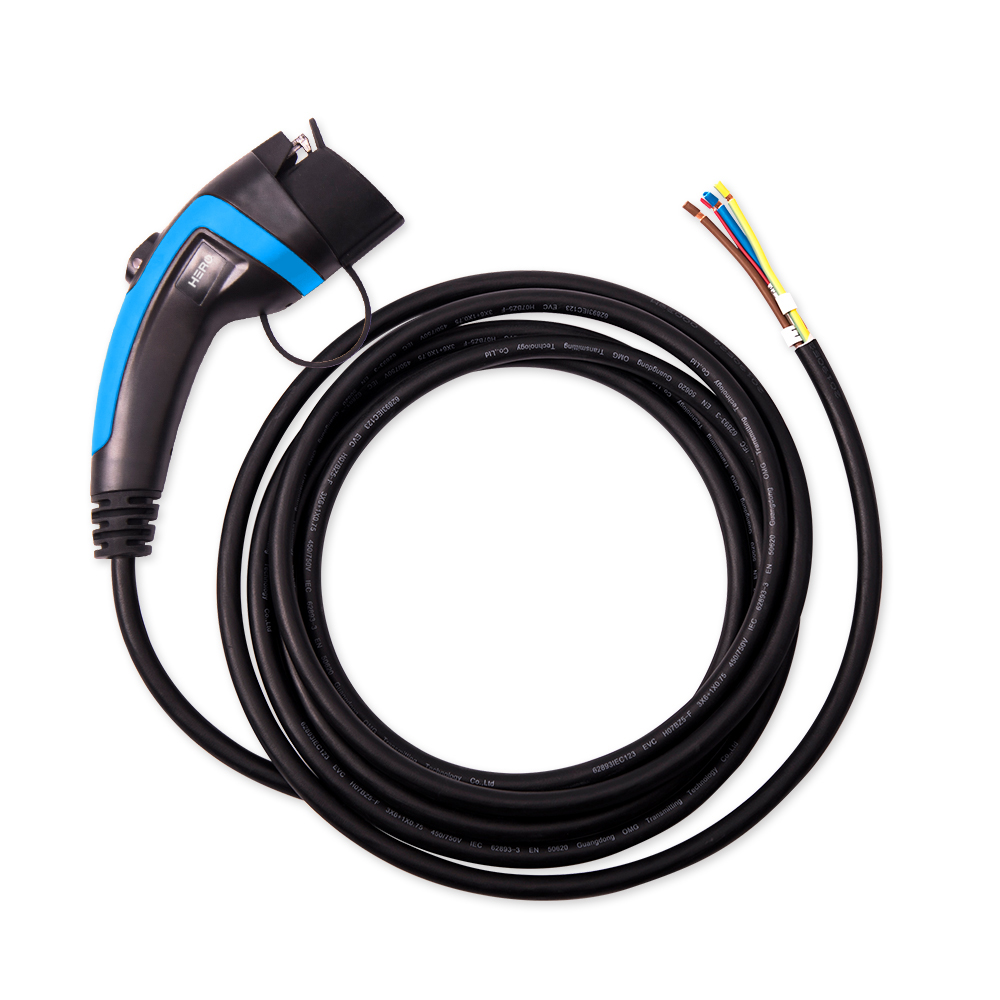

SAE J1772 Type 1 Open End Charging Cable-Blue or OEM

Type 1 Open End Charing Cable

Open end , Type 1 EV charging cable

Mechanical Properties

Mechanical life: no-load plug>10000times

Impact of external force: be able to afford 1m drop and 2tons vehicle run over pressure
Insertion and extraction force:<100N

Electrical Performance

Rated current: 16A/20A/32A/50A

Rated voltage: 120V/250V
Insulation resistance: >1000MΩ(DC500V)
Pins temperature rise:<50K
Withstand voltage: 2500V
Contact impedance: 0.5mΩMax

Raw Material

Shell material: thermoplastics, flame retardant grade UL94-0
Plug pin:copper alloy, silver-plate

Environmental Performance

Temperature: -30℃~+50℃

SAE Type 1 Charging Cable Features

• Conform to the provisions and requirements of SAE J1772 Standard-2012, it can charge all EV manufactured in the USA, correctly and effectively with high compatibility.

• Using a riveting pressure process with none screw with beautiful appearance. Hand-held design conforms to ergonomic principle,  plug conveniently. The head of pins using insulation design to prevent direct contact with the hand.  The customer is able to install the charger indoors or outdoor, according to actual demand. Firmly locking the charger on the installation backplane can prevent theft.


• XLPO for cable insulation prolonging the aging resistance life-span. TPU sheath improves the bending life and wears resistance of the cable. The best material in the market at present conforms to the latest European Union standards.


• Special internal waterproof protection performance, protection grade achieved IP55 (working condition). The shell can effectively insulate the water from the body and enhance the safety level even in bad weather or special circumstances.


• Adopted double color coating technology, custom color accepted (the regular color orange, blue, green, gray, white)


• Keep the laser logo space for customers. Provide OEM/ODM service to help customers expand the market easier.




Application of SAE Type 1 Charging Cable Features

Apply to Vehicle

Tesla model3, Tesla Model S, Tesla Model X, BAIC EU-Series, BYD Yuan/S2 EV, BYD e5, Chevrolet Volt, Mia, Mia Electric Van, Mitsubishi OUTLANDER PHEV, Nissan NV200 SE Van, Nissan leaf, SAIC Baojun E-Series, SAIC Roewe Ei5 EV, BMW 530e/Le, Renault Zoe, Hyundai Kona EV, BMW i3, BYD Tang PHEV, Chery eQ EV, Toyota Prius PHEV, Volkswagen e-Golf, Geely Emgrand EV, Great Wall Ora R1 EV.

Application in Area

Commercial EV Charging/Workplace EV Charging, Hotels EV Charging, Home/Residential EV Charging, Public EV Charging.

Sample display

Production line

Production workshop and delivery

Tests of charging cables for electric vehicles

Through rigorous testing and the best quality on the Chinese market. If you choose HERO cables, it will definitely increase the value of your car brand/charger brand in the market!

The products have passed TUV/CE/ROHS certification to ensure the safety and peace of mind of end customers.
