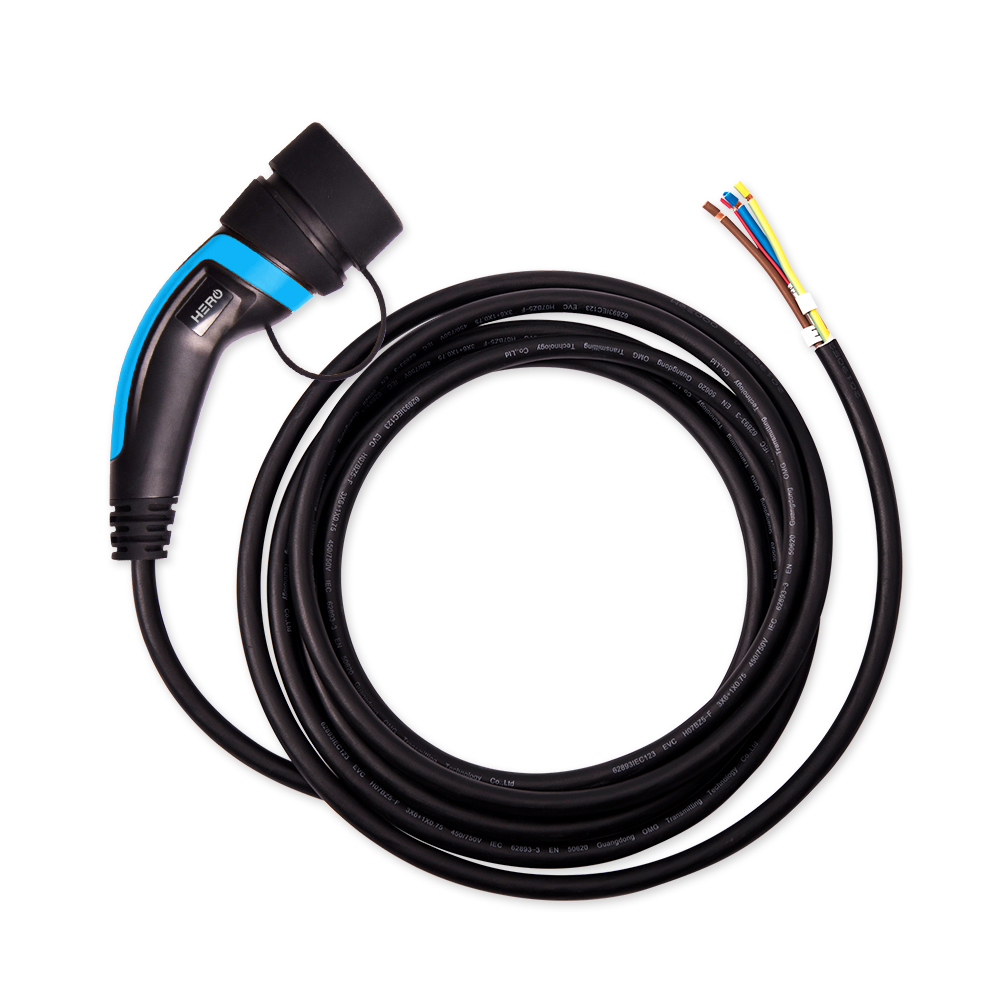

IEC 62196 Type 2 Open End Charging Cable-Blue or OEM

Open End Type 2 EV Charging Cable

Mechanical properties

Mechanical life: idle plug > 10,000 times

Impact resistance: They can withstand a 1m drop and 2T vehicle overpressure

Insertion and extraction force: <100 N

Electrical power

Rated current: 16A/20A/32A

Rated voltage: 250V/480V

Insulation resistance: >1000MΩ (DC500V)

Pin temperature rise: <50K

Dielectric strength: 2500V

Contact impedance: 0.5mΩMax

Raw material

Housing material: thermoplastics, flame retardant class UL94-0

Pin: copper alloy, silver + top thermoplastic

Environmental performanceTemperature:

-30℃~+50℃

Features of the EV charging cable type 2

The suitable charging cable for your electric car.

Conforms to the provisions and requirements of IEC62196-2 2016 2-llb. The Type 2 electric vehicle cable can charge all electric vehicles manufactured in Europe and the USA correctly, effectively and with high compatibility.

Using rivet printing process without screw with beautiful appearance. The portable design of Type 2 EV cable conforms to the ergonomic principle and is convenient to connect. This is one of the advantages of the EV Type 2 plug.

XLPO for cable insulation extends the service life of aging resistance. The TPU jacket improves the bending strength and wear resistance of the cable. The best material currently on the market meets the latest European Union standards.

Excellent internal waterproof protection performance, protection level reaches IP55 (operating condition). The shell can effectively isolate water from the body and increase safety even in bad weather or special circumstances.

Adopted double color coating technology, customized colors are accepted (ordinary colors orange, blue, green, gray, white).

Keep the laser logo space free for the customer. Provide OEM/ODM service to help customers expand the market.

Application of Type 2 EV charging cable

Apply to vehicle

Our Type 2 car charger can be used for charging cable types of electric vehicles such as Tesla Model 3, Tesla Model S, Tesla Model X, BAIC EU series, BYD Yuan/S2 EV, BYD e5, Chevrolet Volt etc. for Mia,
for Mia Electric Van, for Mitsubishi OUTLANDER PHEV, for Nissan NV200 SE Van, for Nissan Leaf, for SAIC Baojun E-Series, for SAIC Roewe Ei5 EV, for BMW 530e/Le, for Renault Zoe, for Hyundai Kona EV , for BMW i3,
for BYD Tang PHEV, for Chery eQ EV, for Toyota Prius PHEV, for Volkswagen e-Golf, for Geely Emgrand EV, for Great Wall Ora R1 EV, etc.

Application in the region

Commercial electric vehicle charging/workplace electric vehicle charging, hotel electric vehicle charging, home/home electric vehicle charging, public electric vehicle charging.

Sample display

Production line

Production workshop and delivery

Tests of charging cables for electric vehicles

Through rigorous testing and the best quality on the Chinese market. If you choose HERO cables, it will definitely increase the value of your car brand/charger brand in the market!

The products have passed TUV/CE/ROHS certification to ensure the safety and peace of mind of end customers.
