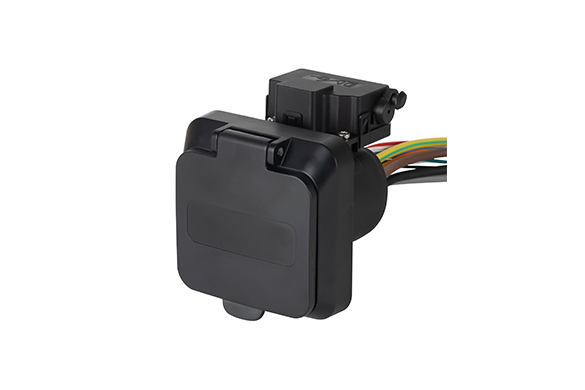

EV Charging TYPE2 Socket - Square
- Rated current:16A,20A,32A,40A,63A
- Rated voltage:250V,440V
Leave a Message
We will call you back soon!
SUBMIT
Place of Origin: China
Brand Name: Hero
Certification: TUV,CE
Model Name: EV Charging TYPE2 Socket -Square
Payment & Shipping Terms
Price: USD
Packaging Details: standard exported package
Delivery Time: 20-30days
Supply Ability: 1000pcs a week
Get Best Price|
Rated current:
|
16A,20A,32A,40A,63A
|
Rated voltage:
|
250V,440V
|
Type 2 charging socket
Riveting Pressure mode
Small volume
85mm×85.6mm×78.6mm
Replaceable Phoenix socket
Mechanical Properties of Type 2 charging socket
Mechanical life: no-load plug>10000
Insertion force:<100N
Electrical Performance
The rated current: 16A,20A,32A,40A,63A
The rated voltage: 250V,440V
Insulation resistance: >1000MΩ(DC500V)
Pins temperature rise:<50K
Withstand voltage: 2000V
Contact impedance: 0.5mΩMax
Applied Materials
Shell material: thermoplastics, flame retardant grade UL94V-0
Contact-tube: Copper alloy, silver plating
Environmental Performance of Type 2 charging socket
Operating temperature: -30℃~+50℃
Waterproof rate: IP55
Through rigorous testings, the best quality in the Chinese market, if you choose HERO Cables, it will definitely enhance the value of your car brand / charger brand in the market !
EV Connector Bending Test
Flame test
Glow Wire Test
Low Temperature Rolling Test
Salt test
Warmly welcome to contact Hero to get the directly price from the factory .
