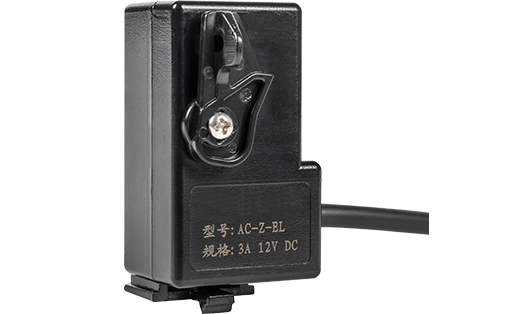

Electronic Lock

Mechanical Properties

Mechanical life: ≥50000 (DC12V POWER-ON 0.05s, power-off 10s)

Thrust: ≥450g(Energized DC 12V)

Retentivity:≥700g

Electrical Performance

Rated current: 3A

Rated voltage:12V±5%

Activation time : ≥0.05s

Power-on sustaining: 0.2s Max

Insulation resistance: >50MΩ(DC500V)

Temperature rise: ≤50℃(power-on 0.05s,power-off 10s)
Withstand voltage: DC1000V 50/60Hz 30s

Raw Material

Shell material: thermoplastics, flame retardant grade UL94V-0

Environmental Performance

Temperature:-30℃~+50℃

GB/T EV Electronic Lock Features

• Conform to the provisions and requirements of GB/T18487.1-2015. Applicable to all domestic electric vehicle charging sockets, Firmly locking the charger on the installation backplane can prevent theft. high anti falling safety performance, let you charge at ease.

• Electromagnetic pulse control is adopted, also can add control board to achieve a long power supply mode.

• Use ultrasonic welding process, with small size and beautiful appearance.

• Have signal feedback function and manual emergency unlocking function. In case of accident, manual emergency unlocking is also available.


• Special internal waterproof protection performance,protection grade achieved IP66. The security performance of the lock will not be reduced even in a very bad environment or special circumstances.


• Reliable material, flame retardant, pressure resistance, abrasion resistance, impact resistance and high oil resistance.

Application of GBT EV Electronic Lock

Apply to Vehicle

For Tesla model3, for Tesla Model S, for Tesla Model X, for BAIC EU-Series, for BYD Yuan/S2 EV, for BYD e5, for Chevrolet Volt, for Mia, for Mia Electric Van, for Mitsubishi OUTLANDER PHEV, for Nissan NV200 SE Van, for Nissan leaf, for SAIC Baojun E-Series, for SAIC Rorwe Ei5 EV, for BMW 530e/Le, for Renault Zoe, for Hyundai Kona EV, for BMW i3, for BYD Tang PHEV, for Chery eQ EV, for Toyota Prius PHEV, for Volkswagen e-Golf, for Geely Emgrand EV, for Great Wall Ora R1 EV

Application in area

Commercial EV Charging/Workplace EV Charging, Hotels EV Charging, Home/Residential EV Charging, Public EV charging

HERO EV Portable Charger acquires all safety and production certificates in electrical filed, ISO9001, ISO 14001, OHSAS 18001, GB/T18487. 1-2015

GBT EV Electronic Lock Parameter

EV Charging Cable Tests

Through rigorous testings, the best quality in the Chinese market, if you choose HERO Cables, it will definitely enhance the value of your car brand / charger brand in the market !

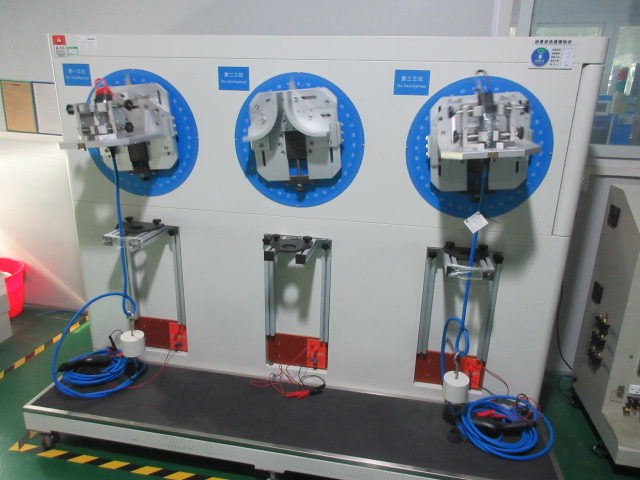

EV Connector Bending Test

Flame test

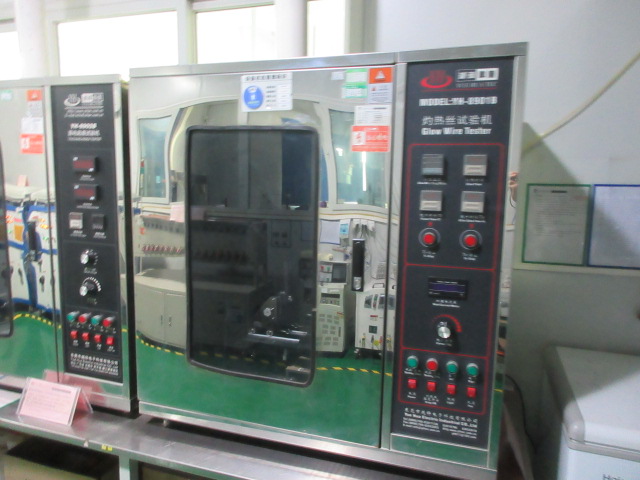

Glow Wire Test

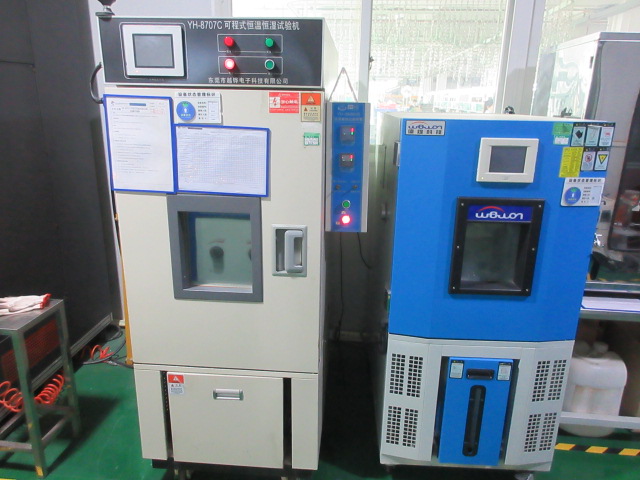

Low Temperature Rolling Test

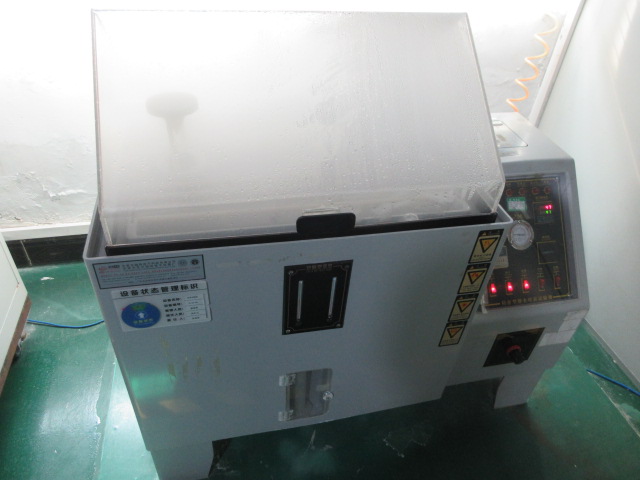

Salt test
