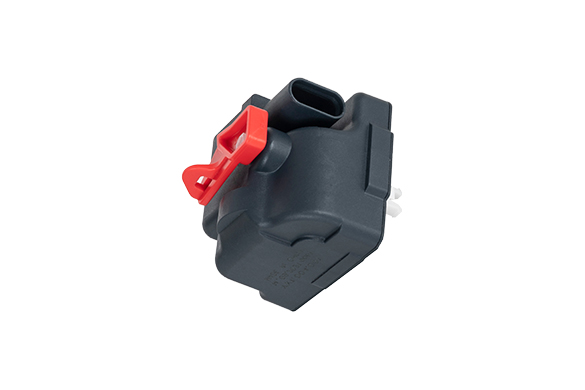

Mechanical Lock
- Rated current:3.2A
- Rated voltage:12V+/-5%
- Activation time :>0.05S
- Power-on sustaining:0.2s Max
Leave a Message
We will call you back soon!
SUBMIT
Place of Origin: China
Brand Name: Hero
Certification: TUV,CE
Model Name: Mechanical Lock
Payment & Shipping Terms
Price: USD
Packaging Details: standard exported package
Delivery Time: 20-30days
Supply Ability: 10000pcs a week
|
Rated current:
|
3.2A
|
Rated voltage:
|
12V+/-5%
|
|
Activation time :
|
>0.05S
|
Power-on sustaining:
|
0.2s Max
|
Mechanical Properties
Mechanical life: ≥60000 (DC12V POWER-ON 0.05s, power-off 10s)
Thrust: ≥450g(Energized DC 12V)
Retentivity:≥700g
Electrical Performance
Rated current: 3.2A
Rated voltage:12V±5%
Activation time : ≥0.05s
Power-on sustaining: 0.2s Max
Insulation resistance: >50MΩ(DC500V)
Temperature rise: ≤85℃(power-on 0.05s,power-off 10s)
Withstand voltage: DC550V 50/60Hz 1min
Raw Material
Shell material: thermoplastics, flame retardant grade UL94V-0
Environmental Performance
Temperature:-40℃~+85℃
Conform to the provisions and requirements of IEC62196-2 2016.. Applicable to all Type2 electric vehicle charging sockets, Firmly locking the charger on the installation backplane can prevent theft. high anti falling safety performance, let you charge at ease.
Mechanical pulse control is adopted, also can add control board to achieve a long power supply mode.
Use ultrasonic welding process, with small size and beautiful appearance.
Have signal feedback function and manual emergency unlocking function. In case of accident, manual emergency unlocking is also available.
Special internal waterproof protection performance,protection grade achieved IP54. The security performance of the lock will not be reduced even in a very bad environment or special circumstances.
Reliable material, flame retardant, pressure resistance, abrasion resistance, impact resistance and high oil resistance.
For Tesla model3, for Tesla Model S, for Tesla Model X, for BAIC EU-Series, for BYD Yuan/S2 EV, for BYD e5, for Chevrolet Volt, for Mia, for Mia Electric Van, for Mitsubishi OUTLANDER PHEV, for Nissan NV200 SE Van, for Nissan leaf, for SAIC Baojun E-Series, for SAIC Rorwe Ei5 EV, for BMW 530e/Le, for Renault Zoe, for Hyundai Kona EV, for BMW i3, for BYD Tang PHEV, for Chery eQ EV, for Toyota Prius PHEV, for Volkswagen e-Golf, for Geely Emgrand EV, for Great Wall Ora R1 EV
Commercial EV Charging/Workplace EV Charging, Hotels EV Charging, Home/Residential EV Charging, Public EV charging
Product Type | EV Electronic Lock |
Rated Current | 3.2A |
Rated Voltage | 12V±5% |
Warranty | 12 months |
Certificate | IEC 62196-2 |
Packaging Details | Standard export wooden case or carton. Or as customer requirements |
Delivery Time(days) | Within 15days, if quantity>500,to be negotiated |
Through rigorous testings, the best quality in the Chinese market, if you choose HERO Cables, it will definitely enhance the value of your car brand / charger brand in the market !
EV Connector Bending Test
Flame test
Glow Wire Test
Low Temperature Rolling Test
Salt test
