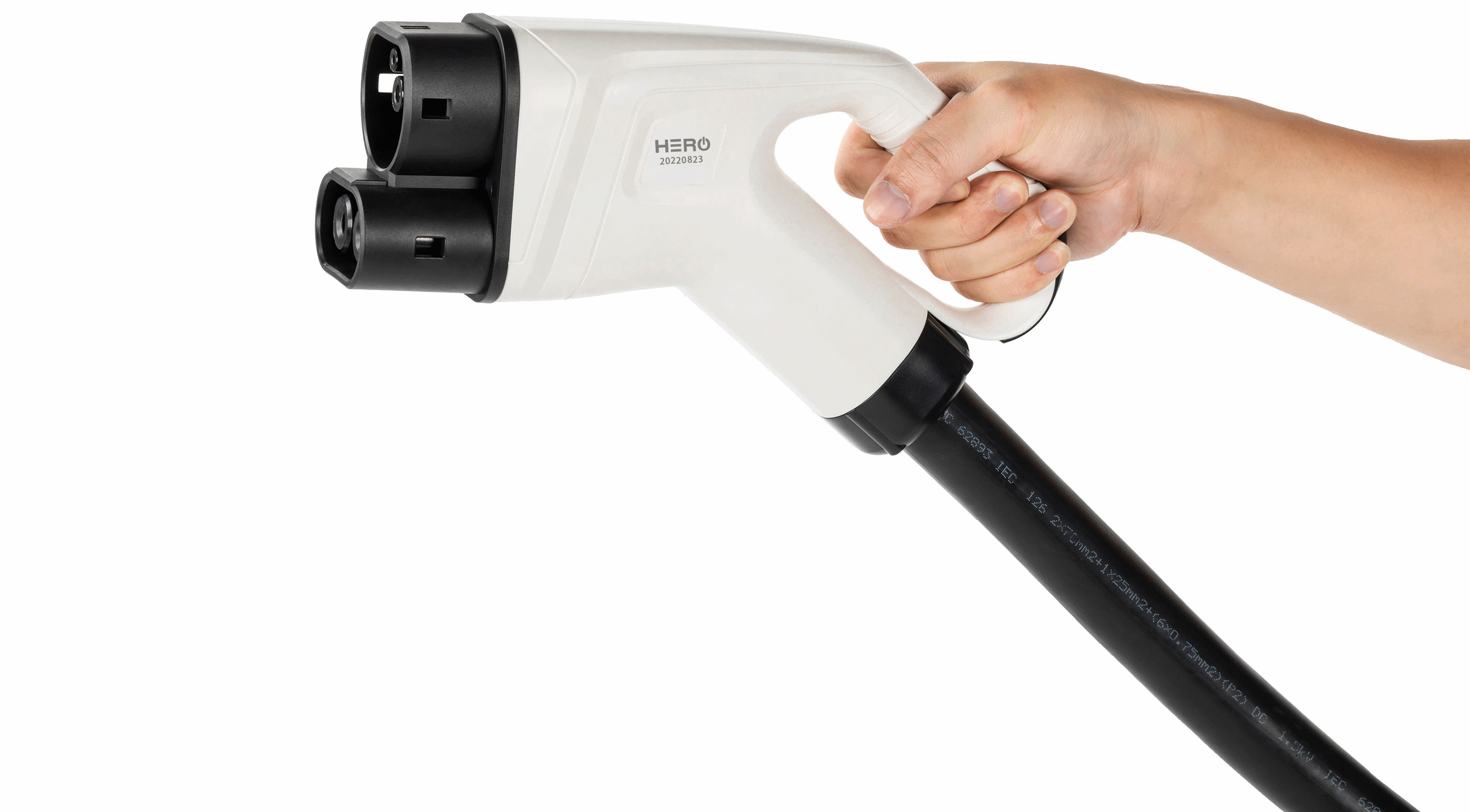

Product Type	CCS1 EV Charging Cable
Rated Current	60A,80A,125A,150A,200A
Rated Voltage	1000V
Cable Specification	2 X 50mm² + 1 X 6mm²+ 6 X 0.75mm
Cable Specification	2 X 70mm² + 1 X 6mm²+ 6 X 0.75mm²
Length	Regular 5 m,custom length accepted
Color	grey, white,black, custom color accepted
Warranty	12 months
Certificate	CE/TUV(Rheinland)
Packaging Details	Standard export wooden case or carton. Or as customer requirements
Delivery Time (days)	Within 15days, if quantity >100, to be negotiated
Delivery Time (days)	Within 15days, if quantity >100, to be negotiated

Features

Charging plug meet 62196-3 IEC 2014 SHEET 3-IIIB standard

Housing massive structure promote protection performance

Product entire insertion and extraction force<100N

Mechanical properties

Mechanical life: no-load plug in/pull out>10000 times

Impact of external force: can afford 1m drop and 2t vehicle run over pressure

Environment performance

Operating temperature: -30°C-+50°C

Applied Materials

Case Material:Thermoplastic,flame retardant grade UL94V-0

Contact bush:Copper alloy,silver plating

Electrical performance

Rated current: 60A,80A,125A,150A,200A

Operation voltage: 600V DC

Insulation resistance: >2000MΩ（DC1000V）

Terminal temperature rise:<50K

Withstand Voltage: 3200V

Contact Resistance: 0.5MΩ Max

EV Charging Cable CCS1 Features

Conform to the provisions and requirements of IEC62196-3 IEC 2014SHEET 3-IIIB, it can charge all EV manufactured in Europe and USA, correctly and effectively with high compatibility.
XLPO for cable insulation prolonging the aging resistance life-span. TPU sheath improves the bending life and wear resistance of cable. The best material in the market at present, conforms to the latest European Union standards.
Excellent internal waterproof protection performance, protection grade achieved IP65 (working condition). The shell can effectively insulate water from body and enhance the safety level even in bad weather or special circumstances.
Adopted double color coating technology, custom color accepted (regular color orange, blue, green, grey, white)
Keep the laser logo space for customer. Provide OEM/ODM service to help customer expand market easier

EV Charging Cable Tests

Through rigorous testings, the best quality in the Chinese market, if you choose HERO Cables, it will definitely enhance the value of your car brand / charger brand in the market !

EV Connector Bending Test

EV connector Bending Tester
